North Vancouver Garage Door Guide

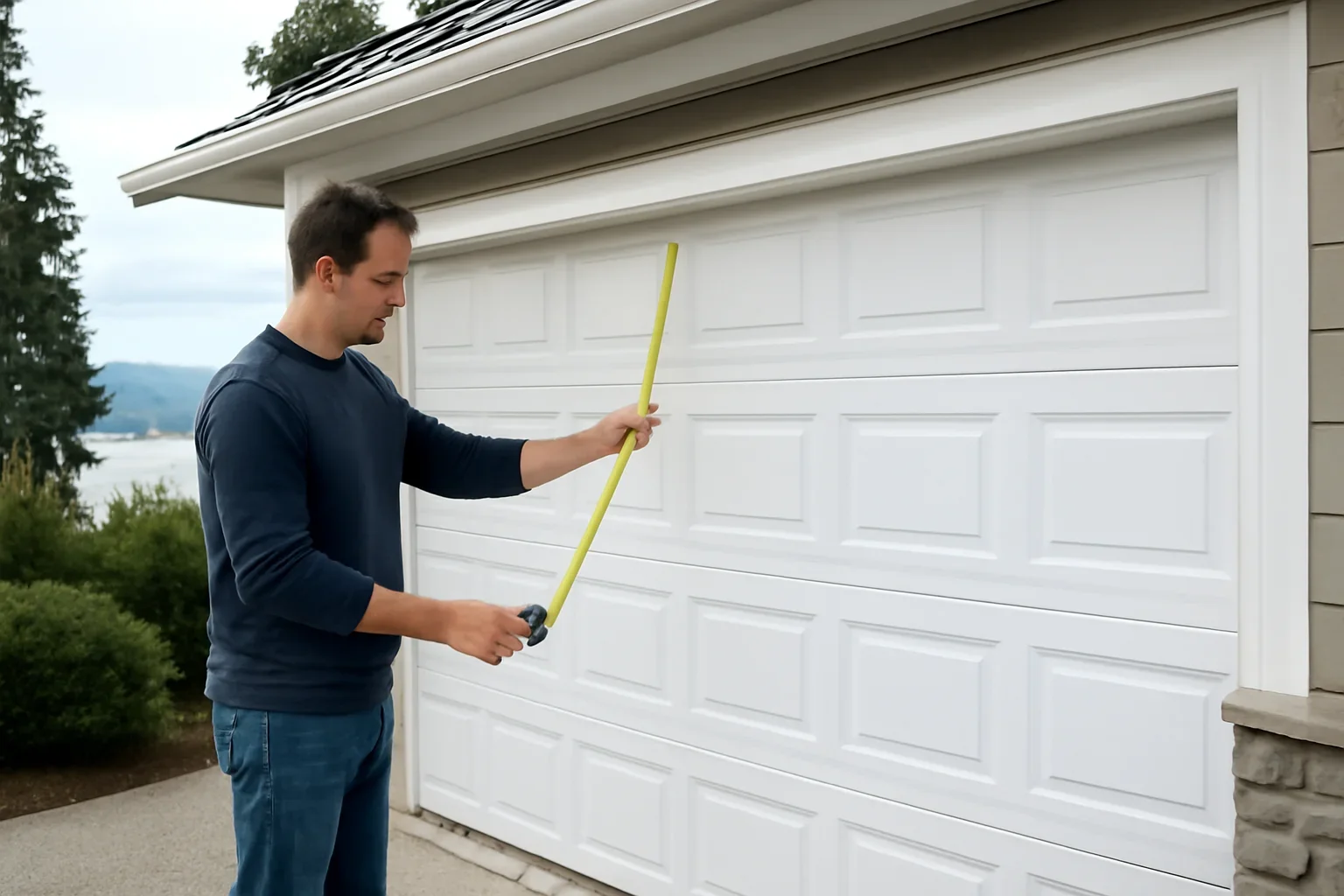

How to Measure for a Replacement Garage Door
Homeowner measurements are useful for early planning and quotes, but final ordering should be based on a professional site measure. Small errors can affect track fit, seal contact, spring selection, and installation clearance.
Garage door installation service
Quick answer
Measuring for a replacement garage door involves more than the opening width and height. A complete survey also checks side room, headroom, backroom, floor level, jamb condition, track type, opener clearance, and obstructions.
What to understand first
Opening size defines the nominal door
Measure finished width and height at several points because masonry and framing may not be square.
Side room holds vertical tracks and hardware
Pipes, shelving, trim, switches, and structural posts can reduce available space.
Headroom determines track and spring options
Low ceilings, beams, ducts, and opener rails may require special hardware.
Backroom affects horizontal tracks and opener travel
The clear depth must accommodate the open door, track radius, and opener system.
Safe checks and next steps

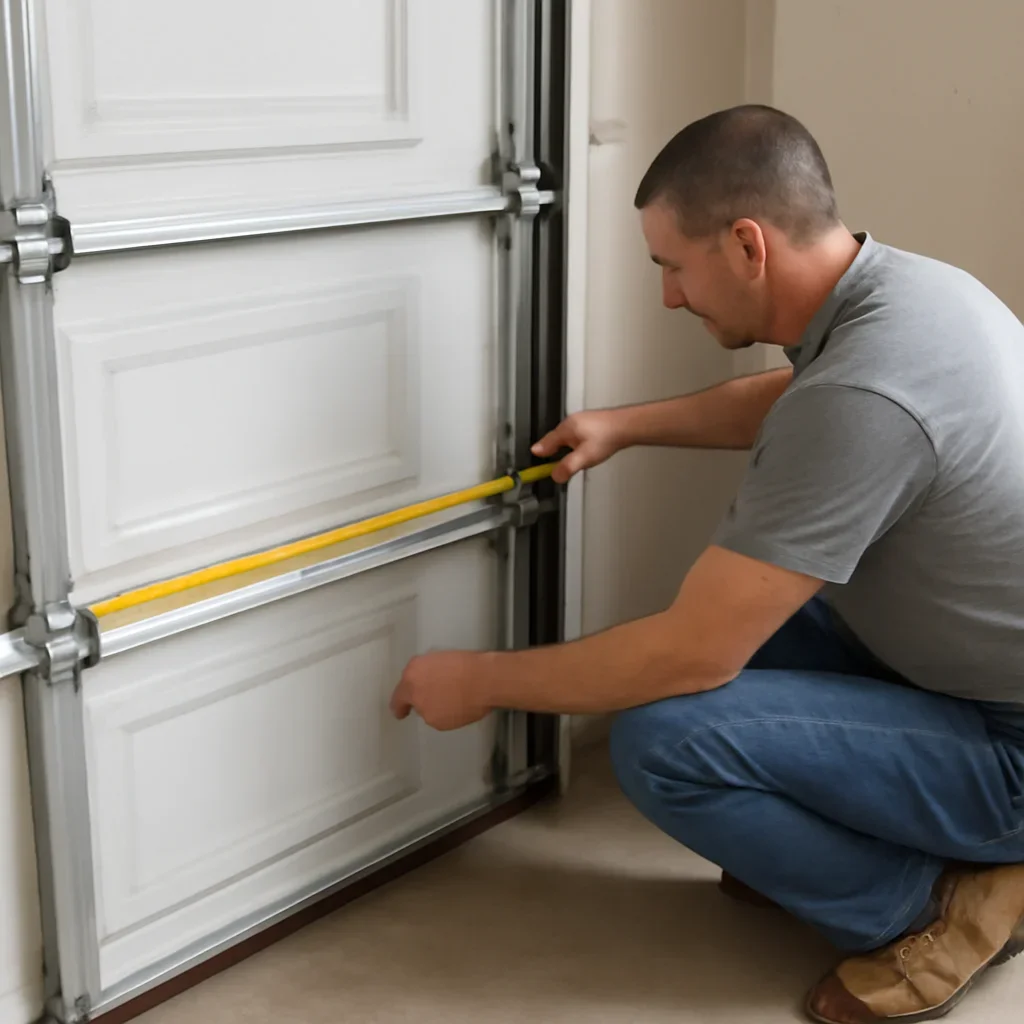

- Measure width at top, middle, and bottom. Record each value rather than averaging away an irregularity.
- Measure height at both sides and centre. Note a sloped or uneven floor separately.
- Record side room and headroom. Measure to the nearest permanent obstruction.
- Photograph the full garage interior. Include tracks, springs, opener, ceiling, walls, and floor.
- Use measurements for planning only. Confirm dimensions on site before ordering a custom or replacement door.
Do not loosen, wind, cut, or reposition garage door springs, cables, drums, bottom brackets, or loaded track hardware. Stop if the door is heavy, crooked, partly off track, or moving unpredictably.
North Vancouver conditions to consider
Older North Vancouver garages may have settled slabs, low beams, narrow side room, or additions around the original opening. These conditions make a site measure especially important.
For adjacent guidance, review low-headroom garage door planning and garage door installation process.
When professional service makes sense
Professional measurement is recommended before purchase, particularly for non-standard openings, low headroom, damaged framing, or conversion from one door configuration to another.
The most relevant service resource is garage door replacement service.
Frequently asked questions
Should I measure the existing door or the opening?
The finished opening is the primary reference, but the existing door and hardware provide useful context.
What if the opening is not square?
Record the differences. Framing, seal, or track solutions may be needed before installation.
Can I order from rough measurements?
Do not place a final order until the installer confirms all dimensions and clearances.
